Hot-Dip Galvanizing · Structural Steel · Hub, Pakistan
Steel That Outlives Corrosion.
Built to Outlast the Elements.
Commercial hot-dip galvanizing and heavy structural steel fabrication — a 27 ft molten zinc bath at ~450°C, 24,000 MT of annual throughput, and quality-tested zinc coating on every batch.
01 — Interactive Engineering Tool
Coating Lifespan & Thickness Calculator
Estimates your zinc coating spec and maintenance-free service life for your steel thickness and environment.
Zinc loss rates by environment: C2 ≈ 0.7 µm/yr → CX ≈ 8.0 µm/yr.
Indicative estimate — actual life depends on exposure, edge condition and steel surface prep.
02 — Interactive Engineering Tool
Steel Weight & Galvanizing Surface Estimator
Quick structural take-off: weight, zinc requirement and one-click import into the RFQ form.
Section unit weights: I-Beam 30 · Channel 18.5 · Angle 12.2 · Pipe 15.8 kg/m · Plate 78.5 kg/m² per 10mm.
03 — Core Services
One Workshop. The Full Steel Protection Cycle.
From raw fabrication to certified zinc coating — every stage in-house under one roof.
Commercial Hot-Dip Galvanizing
Full immersion in a 27 ft molten zinc bath at ~450°C. Metallurgically bonded zinc coating of 40–120 µm that shrugs off rust, salt air and industrial atmospheres.
- Structures, sections & fabrications up to 27 ft
- Zinc coating 40–120 µm on every batch
- Bath chemistry & temperature logged per batch
Structural Steel Fabrication
Girders, trusses, towers, machine parts and industrial sheds — detailed in CAD, cut on CNC plasma, welded by certified MIG/TIG/arc welders and trial-assembled.
- CAD detailing & CNC plasma cutting
- MIG / TIG / arc welding — certified welders
- Fitting, jigging & trial assembly
Surface Preparation & Quality Assurance
Sandblasting to near-white metal and pickling before dipping, then coating-thickness verification with magnetic gauges — test records with every dispatch.
- Sandblasting & pickling lines
- Magnetic gauge coating-thickness testing
- Adhesion, visual & thickness records per batch
Pipe & Tubular Dipping
Internal and external zinc protection for pipes, tubes, poles and hollow sections — including racking setups that ensure full drainage and uniform coating.
- Internal & external protective coating
- Venting & drainage racking design
- Galvanized threaded fasteners
04 — Process
The 6-Stage Galvanizing Lifecycle
Select a stage to see what happens to your steel at each step.
1. Degreasing & Alkali Rinse
Steel is cleaned in a hot alkaline bath to remove oils, grease and shop dirt. A clean surface is essential — any contamination here shows up as bare patches in the finished zinc coating. Parts are then rinsed to remove residual alkali before pickling.
05 — Proof

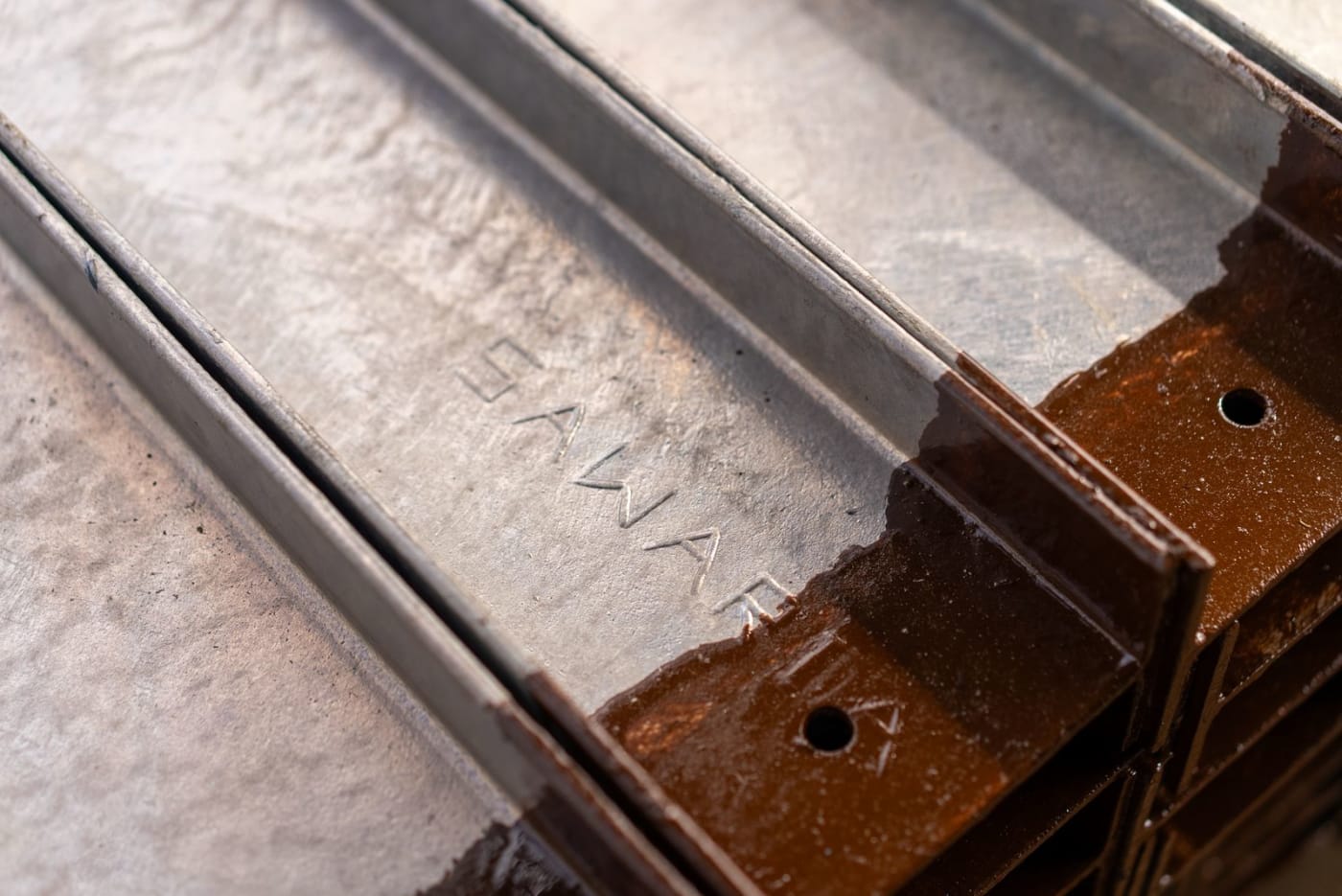

Untreated Steel vs. 25 Years of Hot-Dip Galvanizing
Drag the handle to compare.
06 — Gallery
From Raw Steel to Certified Zinc

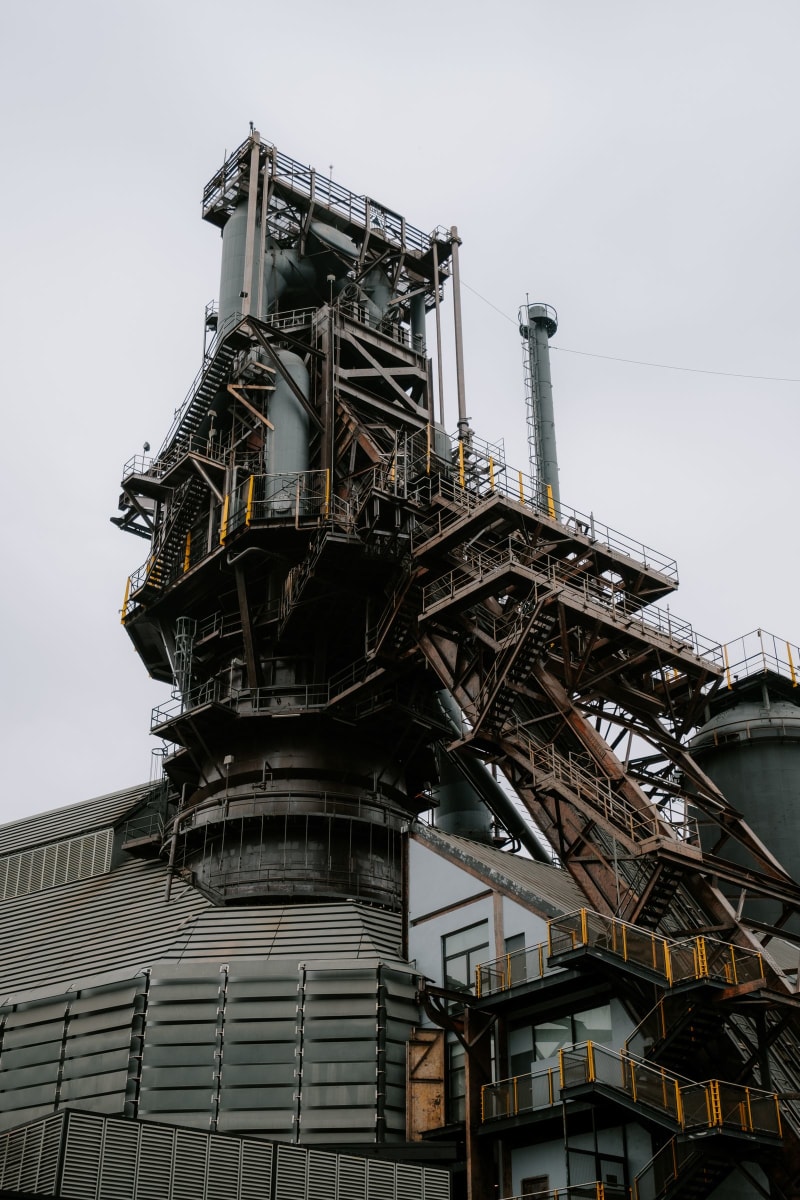

Tower structure fabrication

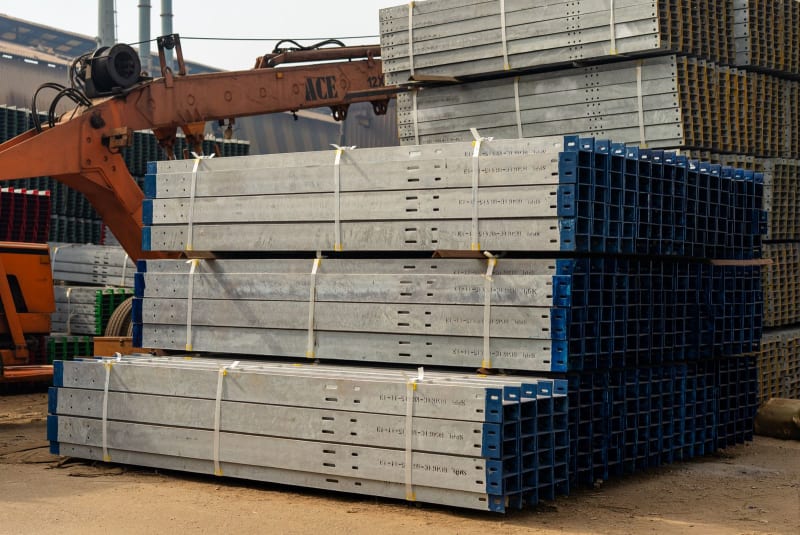

Beams staged for delivery

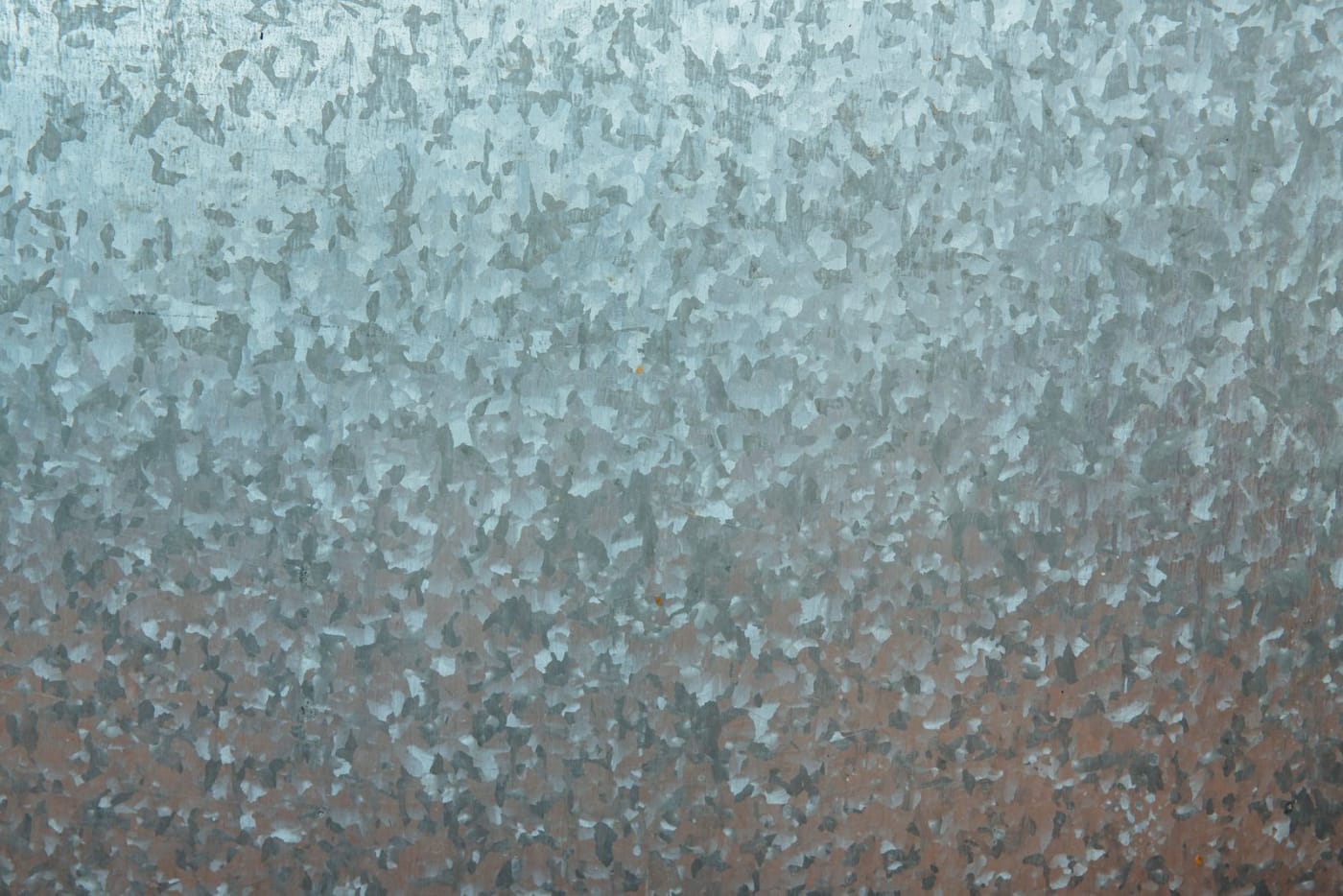

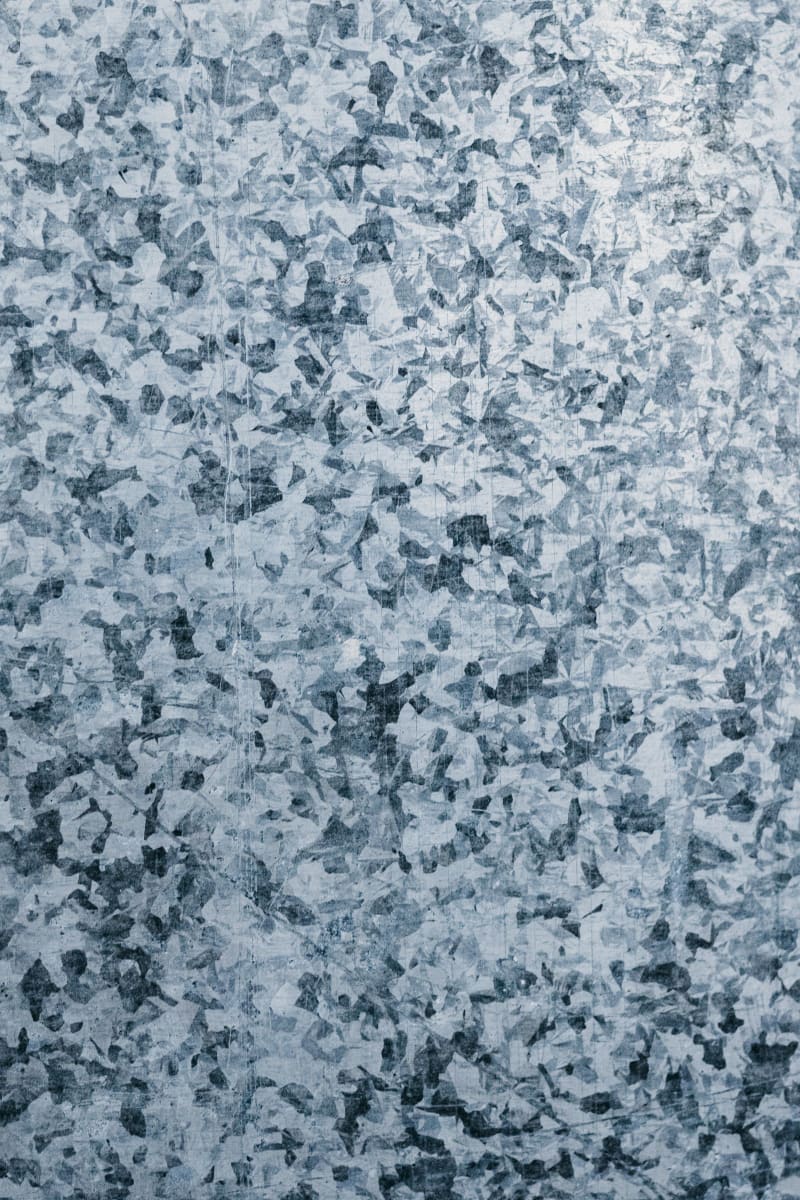

Zinc spangle after dipping

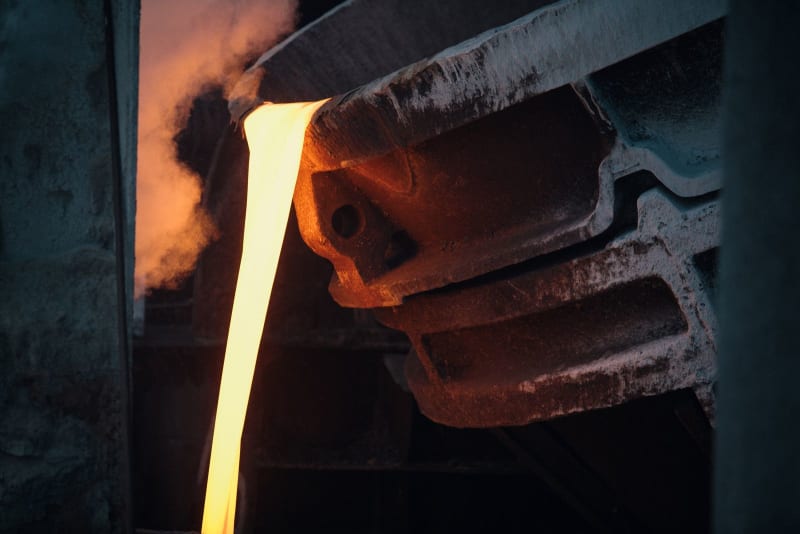

Molten metal handling
Certified welding
Welding in progress

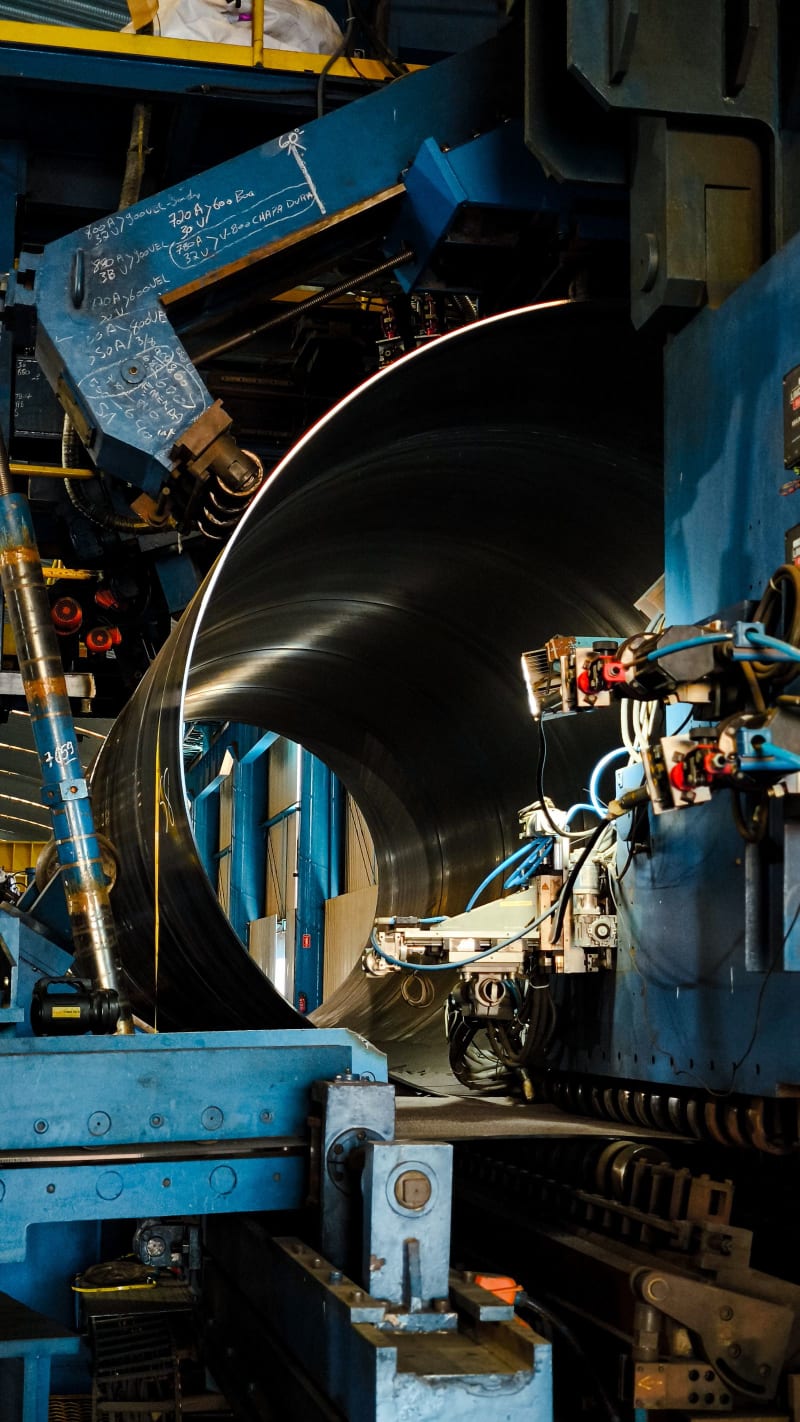

Heavy pipe fabrication

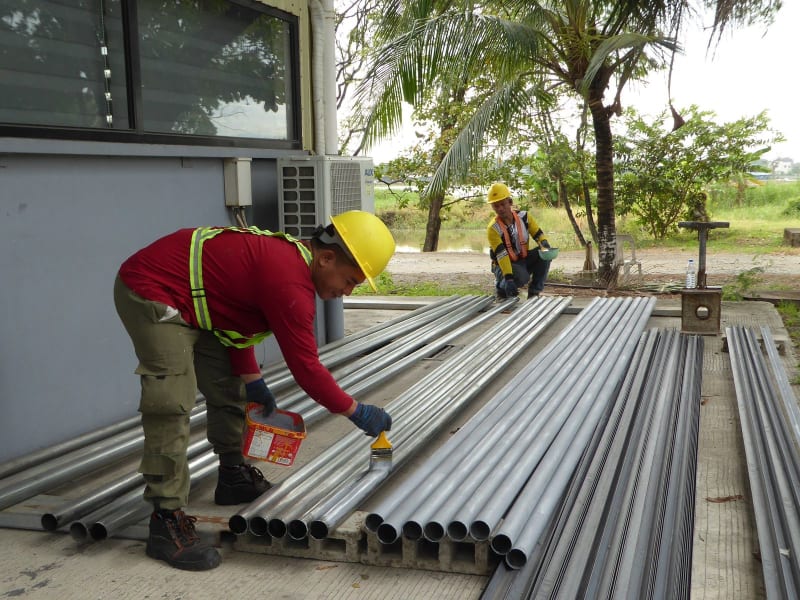

Pipe coating application
07 — Quality Assurance
Quality Assurance, Batch by Batch
Every batch is processed and quality-checked against our in-house control plan — no shortcuts, no exceptions.
Zinc coating thickness tuned to steel section thickness — thick enough to protect for decades, even in coastal salt air.
Every batch is checked with magnetic coating-thickness gauges, plus visual and adhesion inspection before dispatch.
Coating thickness and bath records are kept for every batch and issued with your dispatch — traceable quality, in writing.
Fabrication and galvanizing in-house means no bare welds, no third-party handling damage, no gaps in the coating.
08 — What We Process
Most Demanded Steel Products — Galvanized & Fabricated
These are the steel products Pakistani industry searches for most. We fabricate, hot-dip galvanize and deliver every one of them with a full quality-tested zinc coating — tap any card for a same-day quote.
Steel Grating (Floor Grating)
Serrated & flat-top grating panels for walkways, platforms, trenches and mezzanine decks.
- MS or galvanized, any panel size
- Bearing & cross bars per spec
- Dipped after fabrication — no bare cuts
Chequered Plate / Checker Plate
Anti-slip chequered plates for flooring, ramps, truck beds and stair treads — galvanized after cutting.
- 1.6 mm – 10 mm thickness
- Cut, drilled & edge-dressed
- Full 40–120 µm zinc coating
MS Angle, Channel & Beam
Structural sections — angles, channels, I-beams and H-beams — fabricated and galvanized to length.
- Sections up to 27 ft in one dip
- Holes drilled before dipping
- Bolt-assembly friendly venting
MS / GI Pipe & Tube
Round, square and rectangular pipes, tubes, poles and hollow sections — internal and external zinc protection.
- Internal & external coating
- Venting & drainage racking
- Galvanized threaded fasteners
Expanded Metal Mesh
Expanded metal sheets for fencing, partitions, machine guards and walkways — galvanized for outdoor life.
- Diamond or square pattern
- Sheets cut to size
- Coastal-grade corrosion proofing
Welded Wire Mesh & Grills
Welded mesh panels, window grills and partition screens — plain or powder-coated over galvanizing.
- Panel or roll sizes
- Edge frames welded on request
- Double protection: zinc + paint
Handrails & Railings
MS, stainless and galvanized handrails, balustrades and guard rails — fabricated and dipped as complete sets.
- Industrial or architectural finish
- Flanges & brackets included
- Site-measured to fit
Mezzanine Floor Structures
Complete mezzanine packages — columns, beams, grating or chequered decking, stairs and handrails.
- Design & load calculation included
- All members galvanized
- Bolt-together site assembly
Steel Staircases & Platforms
Straight, spiral and industrial staircases with anti-slip treads, landings and access platforms.
- Made to your rise & run
- Grating or chequered treads
- Fully galvanized, ready to bolt
Industrial Sheds & Structures
Portal frames, trusses, purlins and complete pre-engineered shed structures — fabricated and galvanized.
- Design-to-erection packages
- All framing hot-dip galvanized
- Cladding & accessories supplied
Solar Mounting Structures
Galvanized solar racking and mounting frames for rooftop and ground-mount plants — built for 25-year outdoor life.
- Wind-load engineered
- Hot-dip galvanized — no field painting
- Rooftop or ground-mount kits
Steel Gates, Doors & Frames
Sliding, swing and folding gates, security doors and frames in any size — galvanized before final finish.
- Any size & locking system
- Galvanized + powder-coated
- Galvanized hinges & hardware
09 — FAQ
Galvanizing Questions — Answered
Straight answers on pricing, turnaround, standards and what you can send us.
What is hot-dip galvanizing?
Hot-dip galvanizing immerses prepared steel in a molten zinc bath at ~450°C, creating a metallurgically bonded zinc coating (typically 40–120 µm) that protects against corrosion for decades. It is the world's most widely used corrosion protection for structural steel.
How much does hot-dip galvanizing cost in Pakistan?
Galvanizing is priced per kg and varies by section size, surface condition and order quantity. Our current rate ranges from PKR 180–300 per kg; for quantities above 20 tons, the minimum rate is PKR 180 per kg. Thin sections carry more surface area per kg, so they sit at the upper end of the range. Send your item list and tonnage for an exact same-day quote.
What is the maximum steel length you can galvanize?
Our kettle accepts sections up to 27 ft (8.2 m) in a single dip — no splices. Longer assemblies can be designed in two pieces and bolted after dipping.
How long does galvanizing take?
Standard galvanizing jobs are completed in 24–48 hours after receipt. Fabrication plus galvanizing turnkey packages typically run 1–3 weeks depending on complexity.
Do you fabricate steel before galvanizing?
Yes. CAD detailing, CNC plasma cutting, certified MIG/TIG/arc welding, trial assembly and then hot-dip galvanizing — the full cycle is done in-house under one roof.
Do you issue test records with every batch?
Yes. Every batch is checked with magnetic gauges for coating thickness, plus visual and adhesion inspection. Coating thickness and bath records are issued with every dispatch.
Can you re-galvanize existing or rusty steel?
Yes. We sandblast existing steel to near-white metal, re-galvanize it, and touch up damaged coatings. We also service and repair galvanized structures in the field.
Do you deliver across Pakistan?
Yes. We arrange transport across Pakistan — including Lahore, Islamabad, Hyderabad, Sukkur and all major industrial zones.
